Application

An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam Section
TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

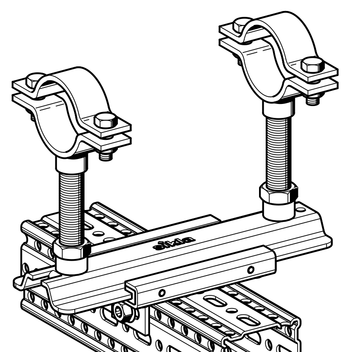

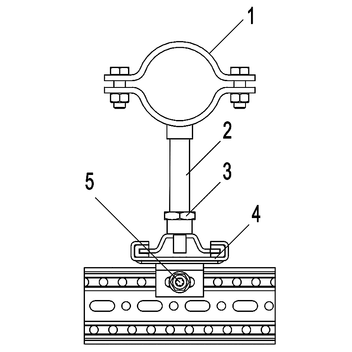

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit FR F 80 S 1/2" / L 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Slide Set GS F80 1G / Slide Set GS F80 1G2
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

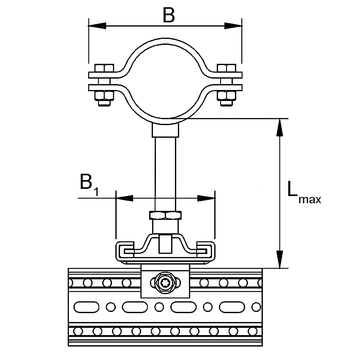

Technical Data

L_{max, vertical} = 200 mm
L_{max, horizontal} = not recommended
