Assembly Groups
Application
An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled.

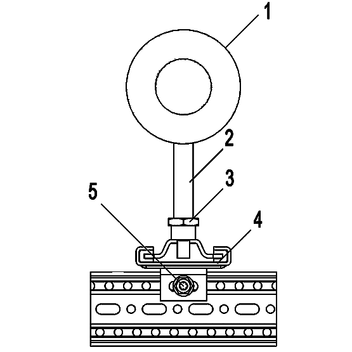

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit FR F 80 S 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT 1/2"
Item 4 Slide Set GS F80 1G
Item 5 Self Forming Screw FLS F
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

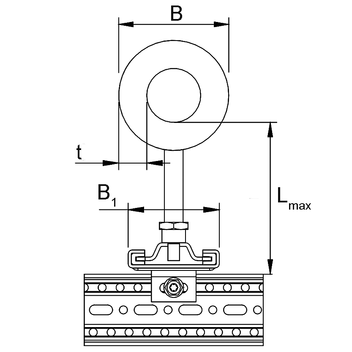

Technical Data
Lmax, vertical = 200 mm
Lmax, horizontal = not recommended
| Material: | |
| Connecting parts: | Steel, HCP |
| Bolts and nuts: | Steel, HCP |
| Insulating body: | PUR foam (250 kg/m3 , B2), µ = 1200 λ = 0,045 W/mK (0°C) |
| Area of use: | -50°C to +105°C |
| Type | Nominal widths [DN] |
B1 [mm] |
B [mm] |
t [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|---|
| 21/30 | 15 | 102 | 81 | 30 | 1.88 | 1 | 110299 |
| 27/30 | 20 | 102 | 87 | 30 | 1.88 | 1 | 110300 |
| 33/30 | 25 | 102 | 93 | 30 | 1.89 | 1 | 110301 |
| 42/30 | 32 | 102 | 102 | 30 | 1.90 | 1 | 110302 |
| 48/30 | 40 | 102 | 108 | 30 | 1.90 | 1 | 110303 |
| 60/30 | 50 | 102 | 120 | 30 | 1.99 | 1 | 110304 |
| 76/30 | 65 | 102 | 136 | 30 | 2.11 | 1 | 110305 |
| 89/30 | 80 | 102 | 149 | 30 | 2.16 | 1 | 110306 |
| 114/40 | 100 | 102 | 195 | 40 | 2.74 | 1 | 110307 |
