Power Plant Construction

siFramo 100/160

U-Holder SB F 100/160


Group

A839


view as PDF file

Application

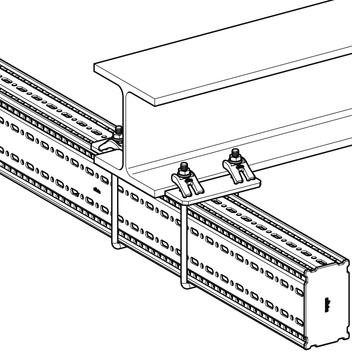

Pre-assembled component to clamp Beam Section F100/160 to the flange side of traditional steel sections.

Scope of delivery

Type SB F 100/160-40:
Holder with thread M12
Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12

Installation

U-Holder to be used in pairs.
Type 40 up to flange thickness 40 mm

Technical Data

Typ
Thread
Tightening torque
[Nm]
Fz
per U-Holder [kN]
Fy
[kN]
My
[kNm]
Mz
[kNm]
SB F 100/160-40 M12 85 16 * * *


* Please compare the suitable type's dimensions by means of the Simotec user guideline to get the permissible lateral forces and torques.

Material:
Steel, FK 8.8, HCP

Approvals / Compliance


Type W
[kg]
Quantity
[pack]
Part-
No.
SB F 100/160-40 1.7 10 113101
