siFramo 80/30
Application

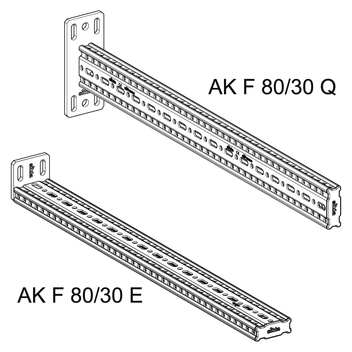

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS.
Installation
With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.
Technical Data

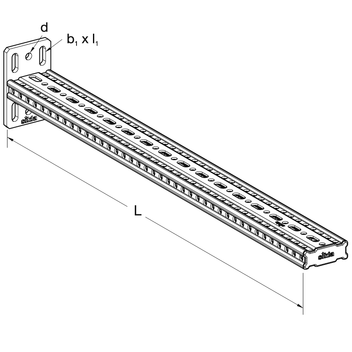

| Type | Dimensions of base plate [mm] | L [mm] | b1 x l1 [mm] | d [mm] |
|---|---|---|---|---|
| AK F 80/30-400 | 130 x 80 x 8 | 400 | 11 x 20 | 14 |
| AK F 80/30-800 | 130 x 80 x 8 | 800 | 11 x 20 | 14 |
| AK F 80/30-E-400 | 80 x 80 x 8 | 400 | 11 x 20 | - |
| AK F 80/30-E-800 | 80 x 80 x 8 | 800 | 11 x 20 | - |
| AK F 80/30-Q-400 | 190 x 80 x 8 | 400 | 11 x 20 | 14 |
| AK F 80/30-Q-800 | 190 x 80 x 8 | 800 | 11 x 20 | 14 |
| Configuration: | Plate welded with Beam Section F 80/30 |
| Material: | |
| Plate: | Steel, HCP |
| Beam section: | Steel, HCP |
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| AK F 80/30-400 | 2.4 | 1 | 113064 |
| AK F 80/30-800 | 4.2 | 1 | 113065 |
| AK F 80/30-E-400 | 2.2 | 1 | 113625 |
| AK F 80/30-E-800 | 4.0 | 1 | 113626 |
| AK F 80/30-Q-400 | 2.5 | 1 | 117292 |
| AK F 80/30-Q-800 | 4.3 | 1 | 117293 |
