Accessories
Application

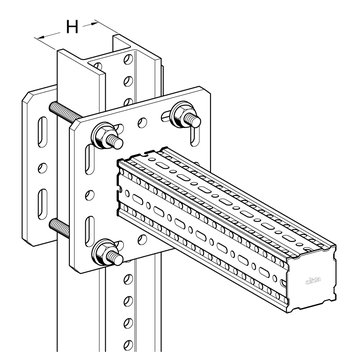

Permits the Connection of Beam Bracket TKO 100 or 120 of the product range siFramo 80/100 and structural Elements 100/120 at a 90° degree twistet bracket. The GPL 220x220 Server as a Counter plate the means of threaded rod M12 and accessories screwed. Also it can be used as a simple Support for Setting up of pipe shoes.
Technical Data

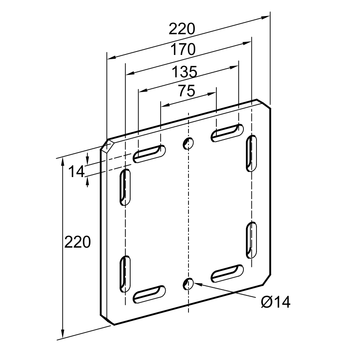

| Type | Dimension of base plate L x B [mm] | Perforation for für | Connection to flange width B [mm] |
|---|---|---|---|
| GPL 220 x 220 | 220 x 220 x 12 | M12 | 80 - 120 |
| Material: | Steel, HCP |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| GPL 220 x 220 | 4.2 | 1 | 194959 |
