Assembly Group BG13 MS41-1/2"


Group

1102


view as PDF file

Application

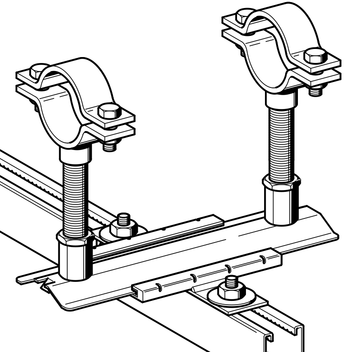

An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the
Sikla 41 channel system. The height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

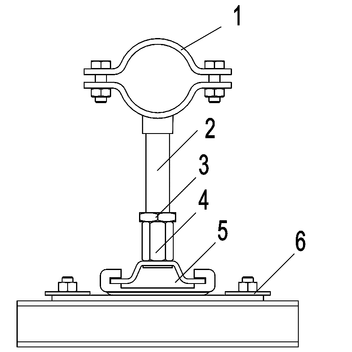

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit FR MS 41 S 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Adapter AD IG/IG ½“ / ½”s
Item 5 Slide Set GS H3G-PL / Slide Set GS H3G2-PL
Item 6 T-Head Bolt TBO HZ41 M10 x 20

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

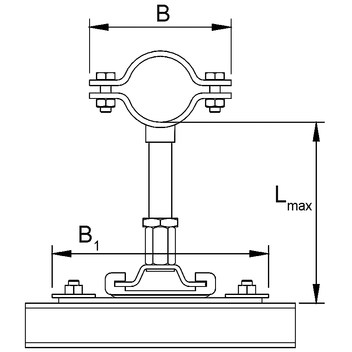

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Type Size range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
DN 15 16 - 22 190 85 2.17 1 110191
DN 20 23 - 27 190 92 2.18 1 110192
DN 25 30 - 34 190 100 2.21 1 110193
DN 32 39 - 44 190 112 2.29 1 110194
DN 40 44 - 49 190 117 2.27 1 110195
DN 50 57 - 61 190 139 2.49 1 110196
DN 65 73 - 77 190 156 3.97 1 110197
DN 80 85 - 89 190 168 4.09 1 110198
DN 100 109 - 116 190 194 4.67 1 110199
