Assembly Group BG15 F80-M10


Group

1102


view as PDF file

Application

An Assembly Group for use as a guided support with the pipe clamp
Stabil D-3G. The Assembly Group is designed for use with the
Beam Section TP F 80. It is connected using the Self Forming Screw FLS F,
and the height is adjusted via the Threaded Rod M10.
The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

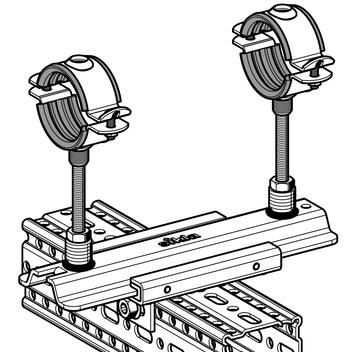

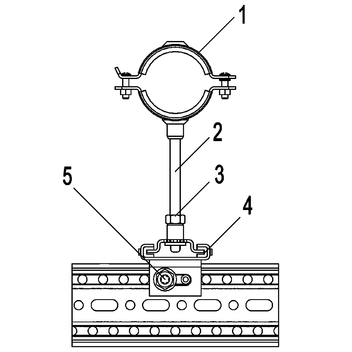

Parts list:
Item 1 Pipe Clamp Stabil D-3G with lining
Assembly Kit MKit FR F 80 S M10 / L M10 consists of:
Item 2 Threaded Rod GST M10 x 200
Item 3 Hexagon Nut M10
Item 4 Slide Set GS F80 2G / GS F80 2G2
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

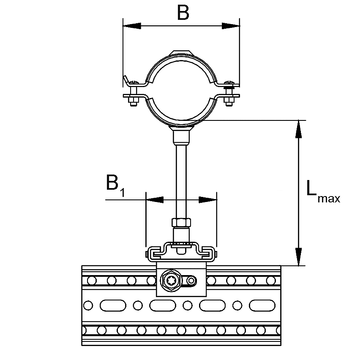

Technical Data

Lmax, vertical = 150 mm
Lmax, horizontal = not recommended

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Sound absorption lining:
SBR/EPDM, black, captively bonded in

Type Size range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
DN 15 19 - 23 67 68 0.86 1 110218
DN 20 24 - 28 67 75 0.89 1 110219
DN 25 33 - 37 67 81 0.91 1 110220
DN 32 40 - 45 67 93 0.93 1 110221
DN 40 47 - 52 67 104 0.95 1 110222
DN 50 60 - 65 67 117 0.97 1 110223
DN 65 73 - 80 67 150 1.55 1 110224
DN 80 88 - 93 67 164 1.65 1 110225
DN 100 108 - 115 67 187 1.77 1 110226
