Assembly Group BG49 F100-1/2"


Group

1102


view as PDF file

Application

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

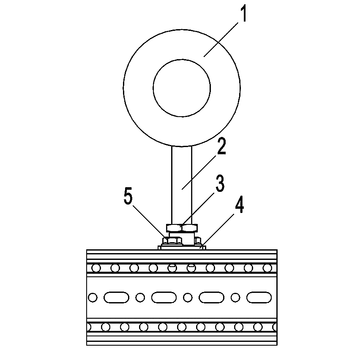

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit F 100 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Mounting Plate GPL F 100-1/2"
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

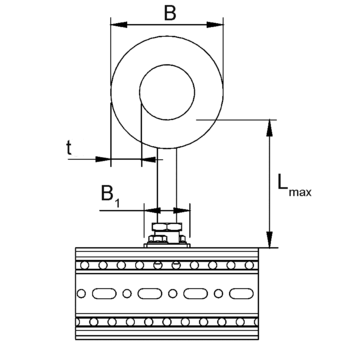

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Assembly parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Insulating body:
PUR foam (250 kg/m3 , B2) µ = 1200,
λ = 0,045 W/mK (0°C)
Area of use:
-50°C to +105°C
Type Nominal widths
[DN]
B1
[mm]
B
[mm]
t
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
21/30 15 50 81 30 0.77 1 113860
27/30 20 50 87 30 0.77 1 113861
33/30 25 50 93 30 0.78 1 113862
42/30 32 50 102 30 0.79 1 113863
48/30 40 50 108 30 0.79 1 113864
60/30 50 50 120 30 0.88 1 113865
76/30 65 50 136 30 1.00 1 113866
89/30 80 50 149 30 1.05 1 113867
114/40 100 50 195 40 1.63 1 113868
