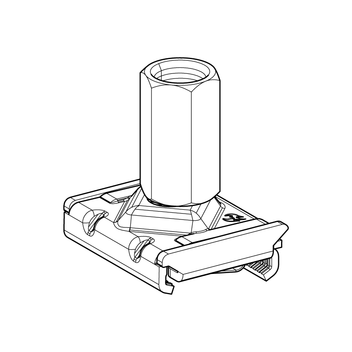

Assembly System siMetrix 46
Application
Quick assembly system for attaching pipe clamps and other components to the siMetrix Profile PRO 46. It is self-retaining thanks to the shape, but can be easily moved by hand. Compatible with Pressix Rods PNS, threaded rods or other connecting elements.
Scope of delivery
Block completely pre-assembled.
Types M12, M16 und 1/2" pre-assaembled with adapter.
Installation
Snap the block onto the profile, then tighten the connecting element with a lock nut. To disassemble, loosen the lock nut and press on the shoulder (highest point) of the block upper part and pull it off the profile.
Technical Data

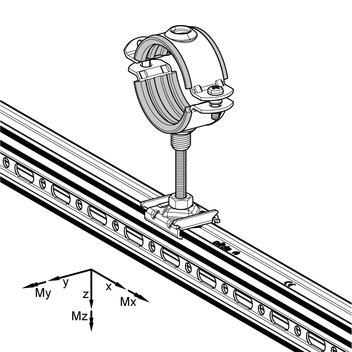

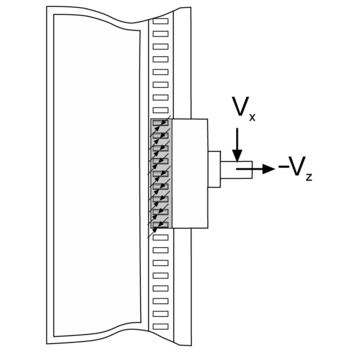

| Type | ± Vx,perm. * [kN] | ± Vy,perm. * [kN] | ± Vz,perm. [kN] ≤ M8 | ± Vz,perm. [kN] ≥ M10 | ± Mx,perm. * [kNm] | ± My,perm. * [kNm] |
|---|---|---|---|---|---|---|
| PBH 46 | 0.55 | 2.54 | 4.0 | 4.33 | 0.08 | 0.09 |
* Load direction not RAL-tested
| Tightening torque: | 15 Nm |
| Material: | Steel, HCP |
Approvals / Compliance
 | This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655. |
* = no RAL quality label
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| M6 * | 0.09 | 25 | 803546 |
| M8 | 0.09 | 25 | 803547 |
| M10 | 0.09 | 25 | 803548 |
| M12 | 0.17 | 25 | 803549 |
| M16 | 0.15 | 25 | 803550 |
| 1/2" | 0.19 | 25 | 803551 |
