Injection System VMZ - Resin


Group

1409


view as PDF file

Application

Resin for Resin Anchor Rod VMZ-A. Excellent load capacity in broken and unbroken concrete. The resin mixture hardens resulting in strong bond with the concrete and a perfectly formed expansion sleeve around the conical rod. The inner bond between the conical rod and the resin mixture is broken by applying a torque moment after the hardening process. The VMZ is approved for use under seismic action according to the performance category C1 and C2 (M10 - M16).

Scope of delivery

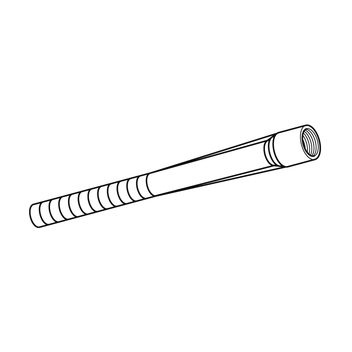

Per cartridge two Mixing Nozzle ANT VM-X are attached.

Installation

Resin and hardener are separated in the cartridge.
A dispensing tool is used to push both components through a mixing nozzle. In the nozzle the resin and hardener are mixed and filled into the the cleaned drill hole.

After a longer break in work, exchange of the mixing nozzle allows further use of the resin.

Reach of resin:

Type
Number of drill holes
per cartridge
VMZ-A M8 ... 58
VMZ-A M10 ... 39
VMZ-A M12 ... 27
VMZ-A M16 ... 16

Technical Data

Detailed technical information could be seen in the data sheets of Resin Anchor Rod VMZ, as well as in the Approval ETA-10/0260.

Material:
Vinylester basis, styrol-free

Approvals / Compliance

Sikla Approval ETA-10/0260

Type Content W
[kg]
Quantity
[pack]
Part-
No.
VMZ 280 280 ml 0.56 1 501634
Mixing Nozzle ANT VM-X   0.01 1 190829
