Application
The use of the Plug-on Setting Tool facilitates the assembly of Drop-In Anchors significantly. The reduction of assembly time and of the assembly effort enables an economical installation of the anchors.
Scope of delivery

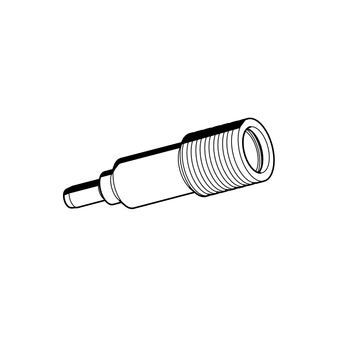

ASW: Expanding mandrel incl. collar drill

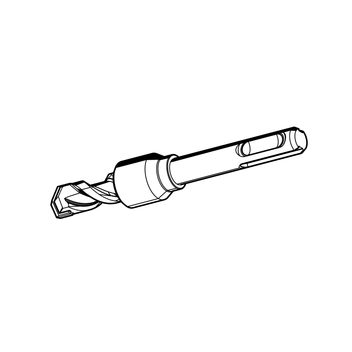

ANT BB: Collar drill
Technical Data
| Type | Suitable for Drop-in anchor | Suitable Collar drill BB |
|---|---|---|
| ASW M8 x 25 | AN ES M8 x 25 | ANT BB 10 x 25 |
| ASW M8 x 30 | AN ES M8 x 30 | ANT BB 10 x 30 |
| ASW M8 x 40 | AN ES M8 x 40 | ANT BB 10 x 40 |
| ASW M10 x 25 | AN ES M10 x 25 | ANT BB 12 x 25 |
| ASW M10 x 30 | AN ES M10 x 30 | ANT BB 12 x 30 |
| ASW M10 x 40 | AN ES M10 x 40 | ANT BB 12 x 40 |
| Material: | |
| Expanding mandrel: | Steel, galvanised |
| Collar drill: | Steel, hardened |
1) Delivery date on request - goods are procured on an order-related basis.
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| ASW M8 x 25 | 0.20 | 1 | 116636 |
| ASW M8 x 30 | 0.20 | 1 | 116637 |
| ASW M8 x 40 | 0.23 | 1 | 116638 |
| ASW M10 x 25 | 0.21 | 1 | 116639 |
| ASW M10 x 30 | 0.21 | 1 | 116640 |
| ASW M10 x 40 | 0.24 | 1 | 116641 |
| ANT BB 10 x 25 | 0.11 | 1 | 116666 |
| ANT BB 10 x 30 | 0.11 | 1 | 116667 |
| ANT BB 10 x 40 | 0.12 | 1 | 116668 |
| ANT BB 12 x 25 1) | 0.12 | 1 | 116669 |
| ANT BB 12 x 30 1) | 0.12 | 1 | 116670 |
| ANT BB 12 x 40 1) | 0.12 | 1 | 116671 |
