Pipe Shoes

Angle Adapter WKA F


Group

A705


view as PDF file

Application

The set WKA F is used to simulate a beam flange with a width of 180 mm on siFramo profiles. It is intended for the connection of third-party pipe shoes. With the help of additional sets, guided supports and fixed points can be realized from sliding pipe shoes.

Scope of delivery


2 Angle Adapters WKA F
2 Threaded Stud M12 x 265
4 Self Forming Screw FLS F

Installation

Angle adapters must be attached to both sides of the siFramo profile with 2 Formlock screws each. If necessary, shorter threaded studs from the external guide set can be replaced by the studs included in the scope of delivery.

Note:

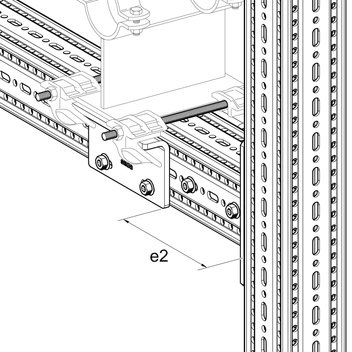

When using an end support, the distance e2 must be taken into account. For square end support distances are 200 mm and 220 mm and for octagonal end supports 150 mm and 180 mm, depending on the profile used.

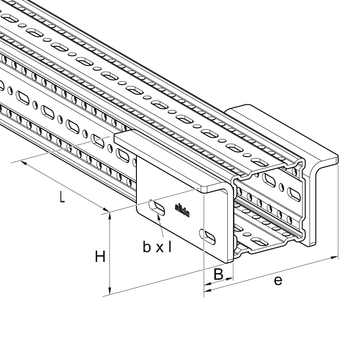

Technical Data

Type
B
[mm]
L
[mm]
H
[mm]
b x l
[mm]
e
[mm]
WKA F 80 50 180 80 11 x 20 180
WKA F 100 40 180 100 11 x 20 180

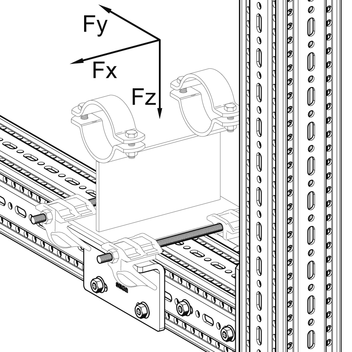

Type
Fx
[kN]
Fy
[kN]
Fz
[kN]
WKA F 80 ±14 ±6 ±12
WKA F 100 ±14 ±6 ±12


Note:
These values only apply in conjunction with Sikla components. When using third-party systems, the load specifications of the used guide or fixed point sets must be taken into account.

Material:
Steel, HCP
Type W
[kg]
Qty.
[set]
Part-
No.
WKA F 80 3.0 1 117412
WKA F 100 3.3 1 117413
