Axial stop variable VAS


Group

A705


view as PDF file

Application

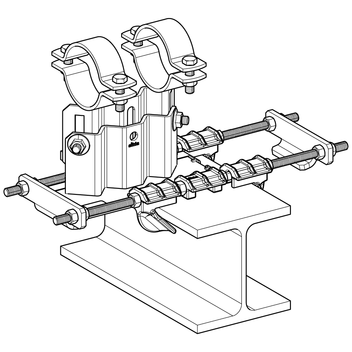

Modification of Simotec pipe shoes to a double-sided variable axial stop, for use with traditional steel beams. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in both axial directions.
Max. Beam flange thickness t ≤ 30 mm

Scope of delivery

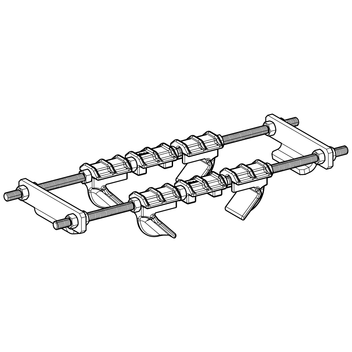

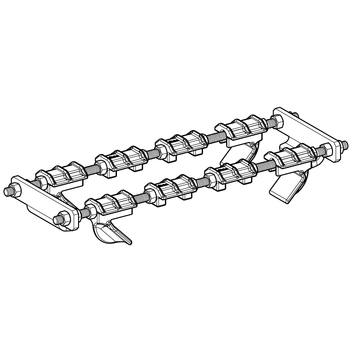

Axial stop variable VAS consists of:
4 Clamping hooks
2 Grub screws M12 x 500 mm
2 Axial stop
Lift-off preventions:
2 pieces for 240/260
4 pieces for 280/300
Hexagon nuts:
12 pieces for VAS 80/140
16 pieces for VAS 160/260
20 pieces for VAS 280/300

Installation

The specified tightening torques must be observed for the connection to the beam. The 500 mm threaded rods are cut to the required length on site. The required amount of axial movement is adjusted using the supplied nuts, with a maximum displacement of 125 mm, equating to half of the sliding plate Forces in the axial direction can only be achieved if anti-slip devices (e.g. cleats/stoppers) are used properly. These must be provided when designing the pipeline and are the responsibility of the pipeline manufacturer.

Technical Data

Load capacities correspond to the values of the fixed point set XS, see the documentation in the catalogue. However, maximum axial load is 12 kN per axial stop.

Tightenning Torque

Flange Thickness
[mm]
Beam Width
80 - 220 mm
Tightenning Torque
[Nm]
Beam Width
221 - 300 mm
Tightenning Torque
[Nm]
5 - 10 40 15
11 - 20 25 15
21 - 30 20 15

Material:
Metal parts, grub screws, nuts:
Steel, HCP
Clamping hooks:
Cast iron, HCP
Type For flange width
[mm]
W
[kg]
Qty.
[set]
Part-
No.
VAS 80/140 80 - 140 3.4 1 802796
VAS 160/260 141 - 260 3.9 1 802799
VAS 280/300 261 - 300 4.4 1 802800
