Pipe Shoes

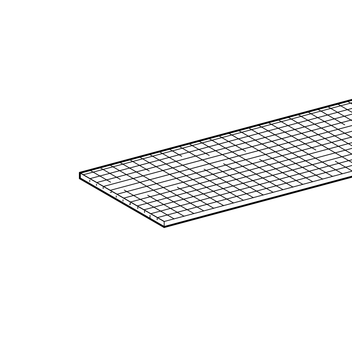

Glass Fabric Tape GSK


Group

1291


view as PDF file

Application

Inlay for pipe clamps for thermic and galvanic separation (prevention of con-
tact corrosion). The Glass Fabric Tape is classified in the hydrolytic class I (best class) according to DIN 12111 regarding resistance to water. So it has an excellent resistance to acid and neutral solutions.

Scope of delivery

In rolls, self-adhesive on one side, coated with PE peel-off foil on the adhesive side.

Technical Data

Temperature range:
Up to +500°C permanent exposure
Density:
2,6 g/cm3
Tensile strength:
3.400 - 3.700 N/mm2
Resistant to:
Oils, greases, solvents and organic acids.
Type Width
[mm]
Thickness
[mm]
Roll
[m]
Part-
No.
30 x 2 30 2.0 10 114865
40 x 2 40 2.0 10 114866
50 x 2 50 2.0 10 114867
60 x 2 60 2.0 10 114868
70 x 2 70 2.0 10 114869
80 x 2 80 2.0 10 800284
