Pipe Shoes

#> 317 mm
NEW

Pipe Shoe for High Temperature LD - HT HV


Group

A765, A766, A767


view as PDF file

Application

Pipe Shoe - Dual Base for pipes on suitable surfaces. Height-adjustable in steps of 2.5 mm.
When resting on steel beams, a minimum flange width of 80 mm is recommended.
These pipe shoes are designed for use in the temperature range 300°C to 500°C. The material-dependent correction values k are used for determining the loads at real operating temperatures. To reach the expected temperatures, according to DIN EN 13480-3, Table 13.11.2–2 must be considered for the substructure.

Scope of delivery

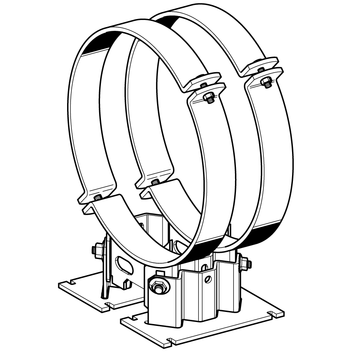

The upper part and the two lower parts are bolted together allowing height adjustment. In order to reduce the spacings of the lugs the pipe clamps from DN 300 are rotated by 45° (see illustration).

Installation

To guarantee that both sliding plates rest correctly, both webs must be adjusted to exactly the same height.

Technical Data

Type
Height H
as delivered [mm]
Height H
Range [mm]
B [mm]
DN 200 - 300
B [mm]
DN 350 - 600
LD - HV 150 150 116 ... 168,5 285 325
LD - HV 200 200 171 ... 223,5 285 325


Tightening torque screw connections:

Clamping bolts
tightening torque
[Nm]
height adjustment
tightening torque
[Nm]
DN 250 - 600 60 bolts in the bar 80

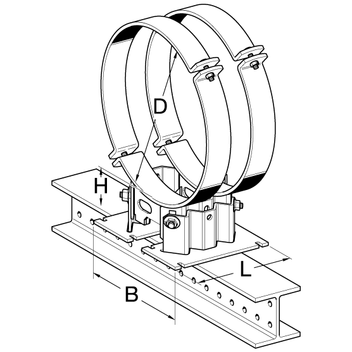

Dimensions:

Metal plate:
L = 250 mm

Material:
Sheet metal parts:
EN 10028-2 - 16Mo3, heat-resistant, powder-coated, black
Bolts, Nuts of the height adjustment:
A4-80
Bolts, Nuts of the clamps:
A4-70
Media temperature:
300°C up to 500°C
Salt spray test:
Resistance > 500 hours

Approvals / Compliance


Delivery time on request - Made-to-order goods.

Type D (pipe)
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
LD - HT HV 150 266-273 (DN 250) 10" 266 - 273 15.9 1 801194
LD - HT HV 150 317-324 (DN 300) 12" 317 - 324 17.0 1 801200
LD - HT HV 150 349-356 (DN 350) 14" 349 - 356 18.1 1 801204
LD - HT HV 150 397-407 (DN 400) 16" 397 - 407 20.4 1 801210
LD - HT HV 150 447-457 (DN 450) 18" 447 - 457 22.6 1 801215
LD - HT HV 150 498-508 (DN 500) 20" 498 - 508 24.1 1 801220
LD - HT HV 150 600-610 (DN 600) 24" 600 - 610 26.4 1 801230

LD - HT HV 200 266-273 (DN 250) 10" 266 - 273 16.9 1 801242
LD - HT HV 200 317-324 (DN 300) 12" 317 - 324 18.0 1 801248
LD - HT HV 200 349-356 (DN 350) 14" 349 - 356 19.0 1 801252
LD - HT HV 200 397-407 (DN 400) 16" 397 - 407 21.4 1 801258
LD - HT HV 200 447-457 (DN 450) 18" 447 - 457 23.3 1 801263
LD - HT HV 200 498-508 (DN 500) 20" 498 - 508 24.8 1 801268
LD - HT HV 200 600-610 (DN 600) 24" 600 - 610 27.5 1 801278
