siFramo Eye-Plate HP F 100


Group

A299


view as PDF file

Application

Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system.
The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.

Installation

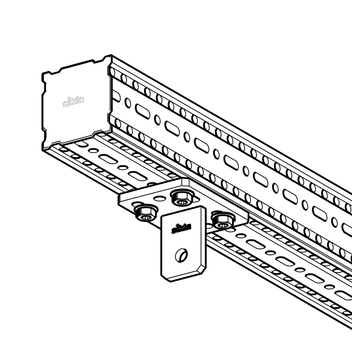

The siFramo Eye-Plate HP F 100 is fastened to the supporting siFramo 100 section by means of 4no. FLS F screws. The siFramo Eye-Plate can also be fastened directly to concrete by means of 2no. M10 anchors.

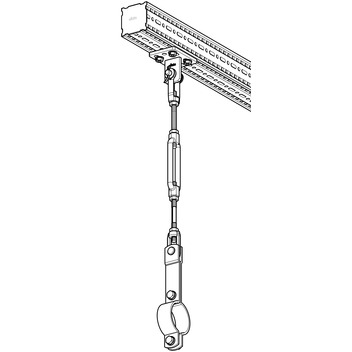

Type A: Load Chain runs crosswise to the beam
Type B: Load Chain runs longitudinally to the beam

Technical Data

Type
max. perm. tensile load
[kN]
M10 11.2
M12 12.1
M16 12.5


The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.

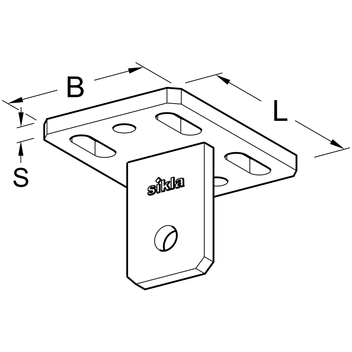

L
[mm]
B
[mm]
S
[mm]
110 100 8

Material:
Steel, HCP
Type W
[kg]
Quantity
[pack]
Part-
No.
HP F 100 - A M10 0.8 10 115050
HP F 100 - A M12 0.8 10 115051
HP F 100 - A M16 0.8 10 115052

HP F 100 - B M10 0.8 10 115047
HP F 100 - B M12 0.8 10 115048
HP F 100 - B M16 0.8 10 115049
