siFramo 100
Application

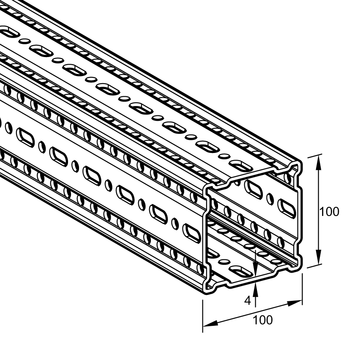

Galvanised hollow-box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes designed to receive Self Forming Screw FLS in conjunction with the relevant component.
Technical Data
| Type | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of inertia [cm] | Torsional moment lt [cm4 ] | Cross section A [cm2 ] |
|---|---|---|---|---|---|
| TP F 100 | Wy: 32.77 Wz: 32.77 | ly: 179.85 lz: 179.85 | iy: 4.80 iz: 4.80 | 135.00 | 7.75 |
Mechanical properties shown above take into account perforations.
The specific values are effective values established by tests, geometrical quantities (analytically determined) can be significantly higher.
| Material: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
- Simotec Static Guideline (application/pdf, 8.6 MB)
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
| Type | Weight [kg/m] |
Qty. [m] |
Part- No. |
|---|---|---|---|
| TP F 100 | 10.8 | 6 | 112904 |
