siFramo 100
Application

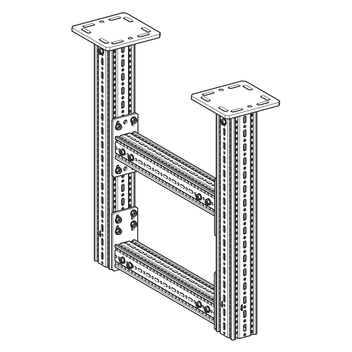

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.
Installation
Depending on the situation, different options are recommended:
| a) | With 2x4 Self Forming Screws FLS when used to connect 2 Beam Sections. |
| b) | With 4 Self Forming Screws FLS applied to the octagonal insert and 2 suitable wall anchors/fixings when connected to the building structure. |
Technical Data

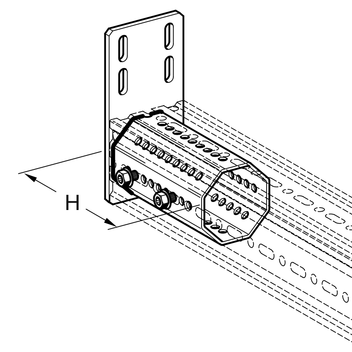

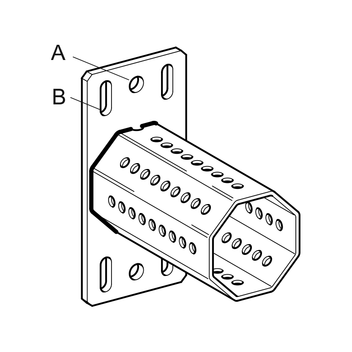

| Type | Dimensions of base plate [mm] | A [mm] | B [mm] | H [mm] |
|---|---|---|---|---|
| STA F 100 | 210 x 100 x 8 | 14 | 20 x 11 | 188 |
| STA F 100-E | 185 x 100 x 8 | - | 20 x 11 | 188 |
| STA F 100-80 | 210 x 100 x 8 | 14 | 20 x 11 | 148 |
| STA F 100-80-E | 185 x 100 x 8 | - | 20 x 11 | 148 |
| Configuration: | Base plate welded to Octagon F 100 or F 80 |
| Material: | |
| Base plate: | Steel, HCP |
| Octagon: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| STA F 100 | 2.4 | 1 | 113073 |
| STA F 100-E | 2.2 | 1 | 113074 |
| STA F 100-80 | 2.0 | 1 | 113337 |
| STA F 100-80-E | 1.8 | 1 | 113481 |
