siFramo 100

SB F 100-16
SB F 100-40

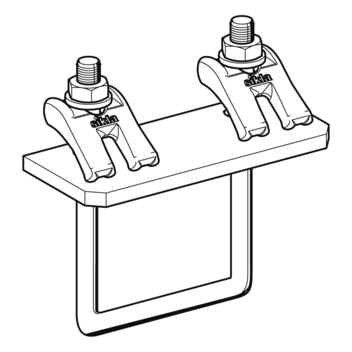

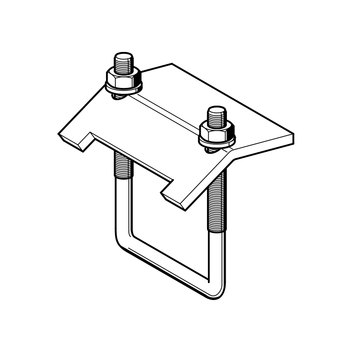

U-Holder SB F 100


Group

A839


view as PDF file

Application

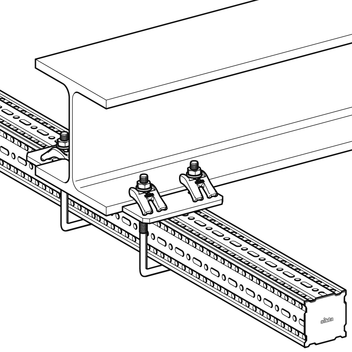

Pre-assembled component to clamp Beam Section F100 to the flange side of traditional steel sections.

Scope of delivery

Type SB F 100-16:
Holder with thread M10
Plate
2 Hexagon nuts M10
2 Washers

Type SB F 100-40:
Holder with thread M12
Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12

Installation

U-Holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm

Technical Data

Typ
Thread
Tightening torque
[Nm]
Fz
per U-Holder [kN]
Fy
[kN]
My
[kNm]
Mz
[kNm]
SB F 100-16 M10 40 9.5 * * *
SB F 100-40 M12 85 16 * * *


* Please compare the suitable type's dimensions by means of the Simotec user guideline to get the permissible lateral forces and torques.

Material:
Steel, FK 8.8, HCP

Approvals / Compliance


Type W
[kg]
Quantity
[pack]
Part-
No.
SB F 100-16 0.7 20 113082
SB F 100-40 1.6 10 113083
