siFramo 100/160
Application
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS.
Scope of delivery
With pre-assembled End Cap ADK F 100-160
Installation
Depending on the situation, different options are recommended:

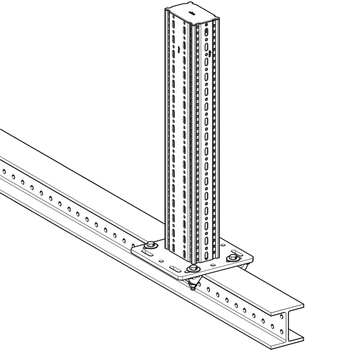

| a) | Directly to building structure: 4x suitable wall anchors. |
| b) | To traditional steel beams between 100 - 180 mm flange dimensions: 1x Assembly Set 5P M12 S . |
Technical Data

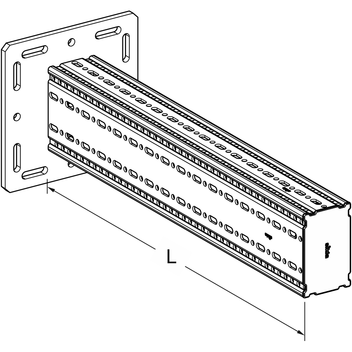

| Type | L [mm] | Dimensions of base plate [mm] | Slots in base plate for |
|---|---|---|---|
| TKO F 100/160-800 | 800 | 280 x 280 x 12 | M12 |
| TKO F 100/160-1200 | 1200 | 280 x 280 x 12 | M12 |
| Configuration: | Base plate welded to Beam Section TP F 100/160 |
| Material: | |
| Base plate: | Steel, HCP |
| Beam Section: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| TKO F 100/160-800 | 18.5 | 1 | 113097 |
| TKO F 100/160-1200 | 24.5 | 1 | 113420 |
