siFramo 100/160
Application

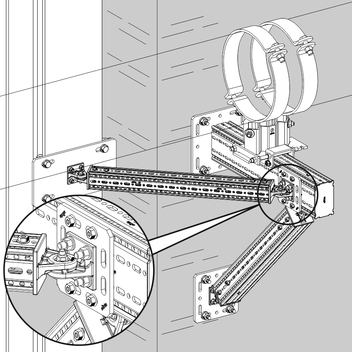

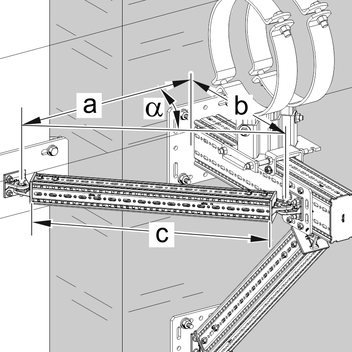

Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 100/160 and for the reinforcement of frame constructions. The angle α is continuously variable between 25° and 155°.
Scope of delivery
Joint GE F 100/160 screwed with Joining Plate
Installation
Attachment of the Joints to the 160 mm face of Beam Section TP F 100/160 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 or TP F 100 (depending on joint type) plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total.
After installation at the desired angle the screws have to be tightened with 40 Nm.
Technical Data

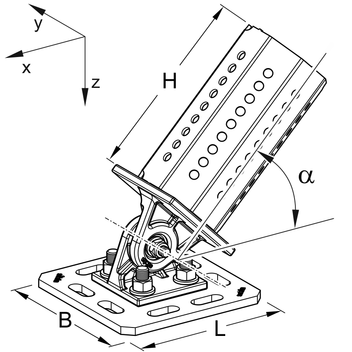

| Typ | Height H [mm] | Length L [mm] | Width B [mm] | Angle α |
|---|---|---|---|---|
| GE F 160 - 80 | 140 | 160 | 160 | 25° - 155° |
| GE F 160 - 100 | 180 | 160 | 160 | 25° - 155° |
| Material: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| GE F 160 - 80 | 3.6 | 1 | 115854 |
| GE F 160 - 100 | 4.3 | 1 | 115855 |
