siFramo 80
Application
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 80 and for the reinforcement of frame constructions. The angle α is continuously variable between 25° and 155°.
Installation

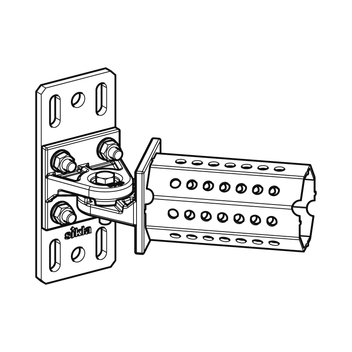

Attachment of Joint GE F 80 to Beam Section TP F 80 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total.
After installation at the desired angle the screws have to be tightened with 40 Nm.
Technical Data
| Type | Height H [mm] | Length L [mm] | Width B [mm] | Angle α | Dimensions of base plate [mm] |
|---|---|---|---|---|---|
| GE F 80 - 80 | 140 | 80 | 80 | 25° - 155° | - |
| GE F 80 - 80 q | 140 | 80 | 80 | 25° - 155° | 190 x 80 x 8 |
| Material: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| GE F 80 - 80 | 2.1 | 1 | 113835 |
| GE F 80 - 80 q | 3.0 | 1 | 113834 |
