siFramo 80

SB F 80-16
SB F 80-40

U-Holder SB F 80


Group

A439


view as PDF file

Application

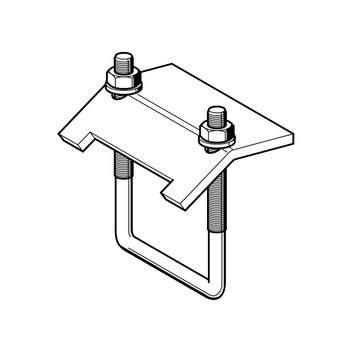

Pre-assembled component to clamp Beam Section F80, to the flange side of traditional steel sections.

Scope of delivery

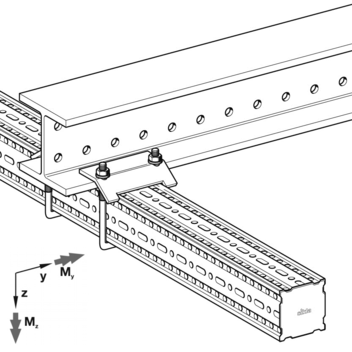

Type SB F 80-16:
Holder with thread M10
Plate
2 Hexagon nuts M10
2 Washers

Type SB F 80-40:
Holder with thread M12
Plate

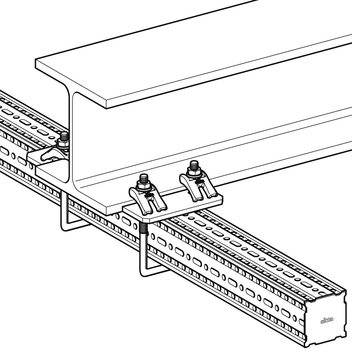

2 Beam Clips SPA 5P AU
2 Hexagon nuts M12

Installation

U-holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm

Technical Data

Type
Thread
Tightening torque
[Nm]
Fz
per U-Holder [kN]
Fy
[kN]
My
[kNm]
Mz
[kNm]
SB F 80-16 M10 40 9.5 * * *
SB F 80-40 M12 85 16 * * *


* Please compare the suitable type's dimensions by means of the Simotec user guideline to get the permissible lateral forces and torques.

Material:
Steel, FK 8.8, HCP

Approvals / Compliance


Type W
[kg]
Quantity
[pack]
Part-
No.
SB F 80-16 0.6 20 192683
SB F 80-40 1.4 10 194010
