Structural Elements 120
Application
Element for mounting to floors, ceilings or walls, or for assembling crossbars. Types TKO 120 x 1500, 2000 and 3000 are not suitable for cantilever arrangements.
Installation
Depending on the situation, different options are recommended:
| a) | Fixation to building structure using 4 heavy duty anchors M12. |
| b) | Frictional connection to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S. |

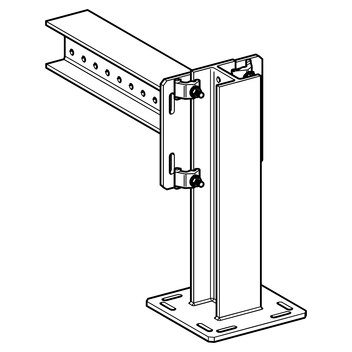

| c) | Interlocking connection to further Beam Brackets by means of Bracket Plates FV100/120. |
The ø 13 mm holes following a 50 mm grid allow the combination with other products using M12 bolts.
Technical Data
| Dimensions of base plate [mm] | Slots in base plate for | ø of punched holes [mm] | Grid of holes [mm] |
|---|---|---|---|
| 220 x 220 x 12 | M12 | 13 | 50 |
| Configuration: | Base plate welded to IPB120 |
| Material: | Steel, hot-dipped galvanised |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
| Type | L [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| TKO 120 x 350 | 350 | 13.3 | 1 | 193150 |
| TKO 120 x 600 | 600 | 19.9 | 1 | 193167 |
| TKO 120 x 800 | 800 | 25.2 | 1 | 193174 |
| TKO 120 x 1000 | 1000 | 30.5 | 1 | 193181 |
| TKO 120 x 1500 | 1500 | 43.7 | 1 | 193198 |
| TKO 120 x 2000 | 2000 | 56.9 | 1 | 193204 |
| TKO 120 x 3000 | 3000 | 83.4 | 1 | 193105 |
