Structural Elements 120

Bracket Plates FV 100/120


Group

A630


view as PDF file

Application

For safe interlocking connection of a Beam Bracket or an End Support STA to other Beam Brackets TKO (adjustment as per grid with 25 or 50 mm).

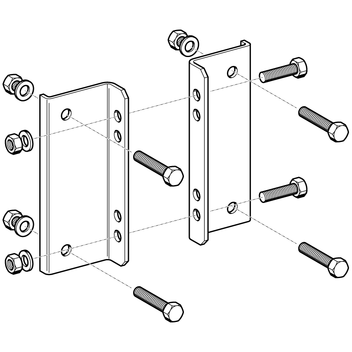

Scope of delivery

Two identical plates.
Accessories:
2 Hexagon Bolts M12 x 35
4 Hexagon Bolts M12 x 45
6 Hexagon Nuts M12
6 Washers

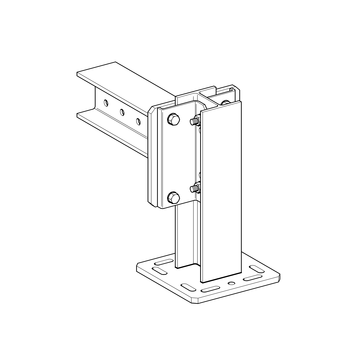

Installation

Mount Bracket Plates to Beam Bracket TKO by using 2 Hexagon Bolts
M12 x 35. Then attach requested Beam Bracket TKO or End Support STA by using 4 Hexagon Bolts M12 x 45.

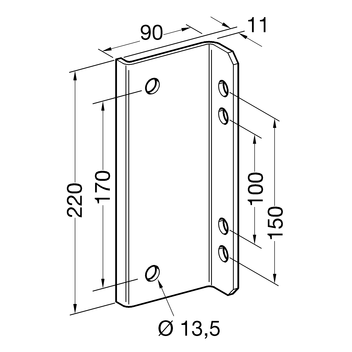

Technical Data

Material:
Bracket Plates:
Steel, hot-dipped galvanised
Bolts:
Steel, class 8.8, hot-dipped galvanised
Nuts:
Steel, class 8, hot-dipped galvanised
Washers:
Steel, hot-dipped galvanised
Type W
[kg]
Quantity
[pack]
Part-
No.
FV 100/120 2.5 1 187616
