Assembly Group BG16 F100-1/2"


Group

1102


view as PDF file

Application

An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

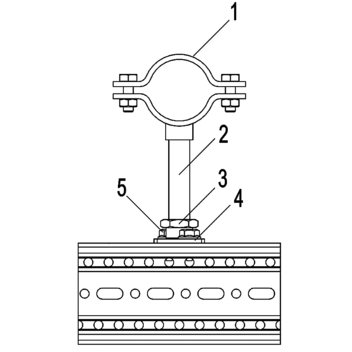

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit F 100 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Mounting Plate GPL F 100-1/2"
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

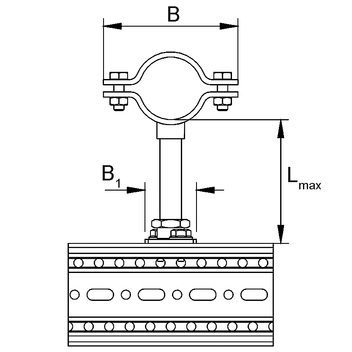

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Type Size range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
DN 15 16 - 22 50 85 0.85 1 113842
DN 20 23 - 27 50 92 0.88 1 113843
DN 25 30 - 34 50 100 0.91 1 113844
DN 32 39 - 44 50 112 0.95 1 113845
DN 40 44 - 49 50 117 0.97 1 113846
DN 50 57 - 61 50 139 1.19 1 113847
DN 65 73 - 77 50 156 1.27 1 113848
DN 80 85 - 89 50 168 1.33 1 113849
DN 100 109 - 116 50 194 1.62 1 113850
