Assembly Group BG52 F80/100


Group

1102


view as PDF file

Application

An Assembly Group for the creation of guided supports for pipes without complex requirements and generally without insulation. As an alternative to U-bolts, this U-clamp is ideal for space-saving, direct assembly on the supporting structure. The slide plate reduces the friction between the pipe and supporting structure (siFramo sections).
A galvanic separation between the pipe and U-clamp and the supporting structure is achieved through the plastic linings and slide plate, meaning that VA pipes can also be secured, for example.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

Parts list:

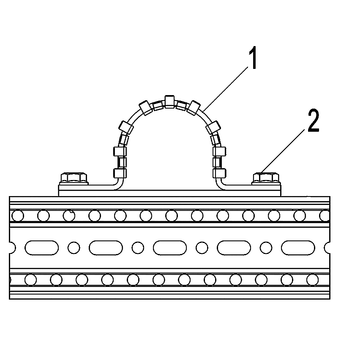

Item 1 U-Camp RUC I
Item 2 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

Technical Data

Material:
Clamp body:
Steel, HCP
Lining and slide plate:
Thermoplastic resins
Area of use:
-20°C to +90°C (at lining and slide plate)

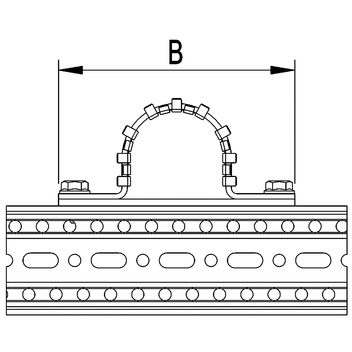

Type Nominal widths
[DN]
B
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
27 15 134 0.28 1 114656
33 20 140 0.29 1 114657
40 25 147 0.32 1 114658
48 32 155 0.34 1 114659
55 40 161 0.36 1 114660
67 50 173 0.41 1 114661
83 65 189 0.48 1 114662
95 80 202 0.52 1 114663
121 100 227 0.61 1 114664
152 125 259 0.71 1 114665
181 150 287 0.83 1 114666
232 200 338 0.99 1 114667
286 250 392 1.20 1 114668
336 300 443 1.34 1 114669
