Assembly Group BG22 F80


Group

1102


view as PDF file

Application

An Assembly Group for the fastening of pipes without complex requirements and without heat insulation. By adapting the hexagon nuts supplied, both guided supports and fixed points can be created.

Scope of delivery

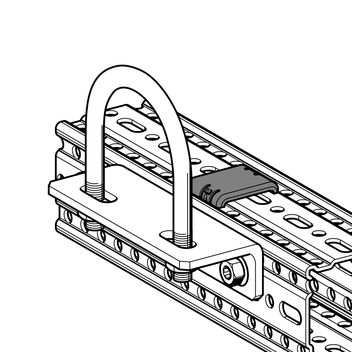

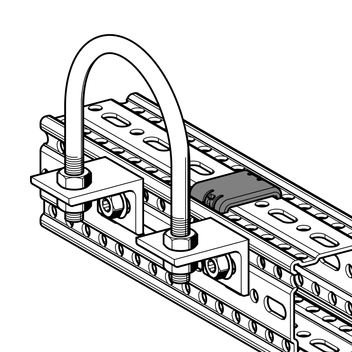

Each Assembly Group is pre-assembled, packed and labeled. For U-bolts with a size of DN 100 upwards, always use two U Bolt Fastening UB Fs.

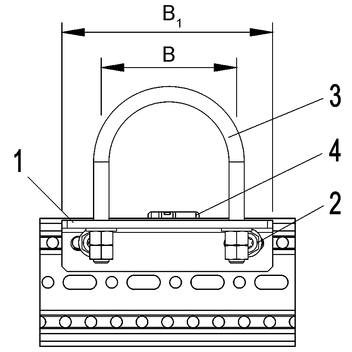

Parts list:
Item 1 U Bolt Fastening UB F
Item 2 Self Forming Screw FLS F
Item 3 U Bolt RUB
Item 4 Pad U-UB F 80

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site. When used as a guided support, the nuts located both above and below the UB fastening must be tightened, enabling the pipe to freely move. In the case of fixed points, the permissible forces of the structural connection and bending forces of the bolt must not be exceeded.

Technical Data

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
U-UB Pad:
Polyamide PA 6.0
Type OD of pipe
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
DN 15 21.3 85 30 0.28 1 110236
DN 20 26.9 85 40 0.32 1 110237
DN 25 33.7 85 48 0.32 1 110238
DN 32 42.4 85 56 0.34 1 110239
DN 40 48.3 85 62 0.34 1 110240
DN 50 60.3 146 76 0.94 1 110241
DN 65 76.1 146 94 0.97 1 110242
DN 80 88.9 146 106 1.00 1 110243
DN 100 114.3 181 136 1.06 1 110244
DN 125 139.7 209 164 1.14 1 110245
DN 150 168.3 237 192 1.23 1 110246
