Assembly Group BG22 F100


Group

1102


view as PDF file

Application

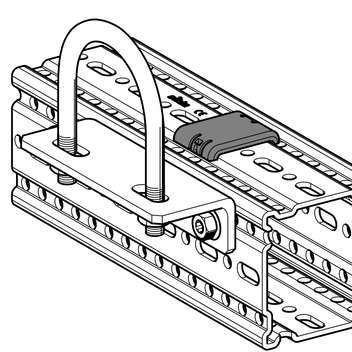

An Assembly Group for the fastening of pipes without complex requirements and without heat insulation on SiFramo sections. By adapting the hexagon nuts supplied, both guided supports and fixed points can be created.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled. For U-bolts with a size of DN 100 upwards, always use two U Bolt Fastening UB Fs.

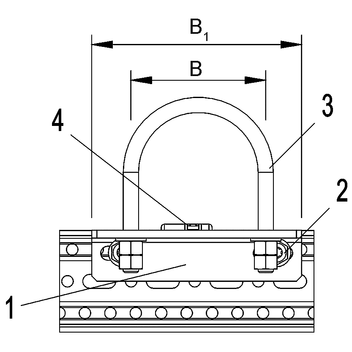

Parts list:
Item 1 U Bolt Fastening UB F
Item 2 Self Forming Screw FLS F
Item 3 U Bolt RUB
Item 4 Pad U-UB F 100

Installation

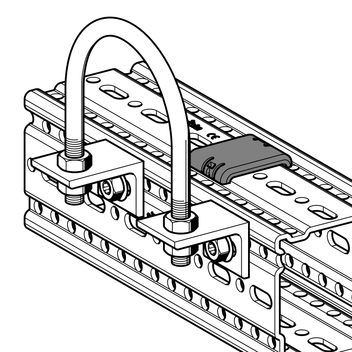

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site. When used as a guided support, the nuts located both above and below the UB fastening must be tightened, enabling the pipe to freely move.. In the case of permanent pipe connections, the permissible forces of the structural connection and bending forces of the bolt must not be exceeded.

Technical Data

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
U-UB pad:
Polyamide PA 6.0
Type OD of pipe
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part-
No.
DN 15 21.3 85 30 0.28 1 113977
DN 20 26.9 85 40 0.32 1 113978
DN 25 33.7 85 48 0.32 1 113979
DN 32 42.4 85 56 0.34 1 113980
DN 40 48.3 85 62 0.34 1 113981
DN 50 60.3 146 76 0.94 1 113982
DN 65 76.1 146 94 0.97 1 113983
DN 80 88.9 146 106 1.00 1 113984
DN 100 114.3 181 136 1.06 1 113985
DN 125 139.7 209 164 1.14 1 113986
DN 150 168.3 237 192 1.23 1 113987
DN 200 219.1 293 248 2.03 1 116919
DN 250 273.0 347 302 2.30 1 116920
DN 300 323.9 397 352 2.94 1 116921
