Assembly Groups
Application
An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam System 100 and steel beams up to a flange width of 100 mm. It is connected using the Assembly Set MS 5P, and the height is adjusted via the Threaded Tube 1/2".
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled.

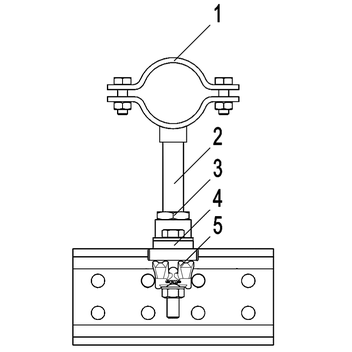

| Parts list: | |
| Item 1 | Pipe Clamp Stabil I-1/2". |
| Assembly Kit MKit T 100 1/2" consists of: | |
| Item 2 | Threaded Tube GR 1/2" x 200 |
| Item 3 | Locking Nut NT G 1/2" |
| Item 4 | Mounting Plate GPL Stabil R1/2"-100 |
| Item 5 | Beam Clip SPA 5P AU M12 HCP |
| Hexagon Bolt M12x60 HCP | |
| Hexagon Nut M12 HCP | |
| Washer HCP |
Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

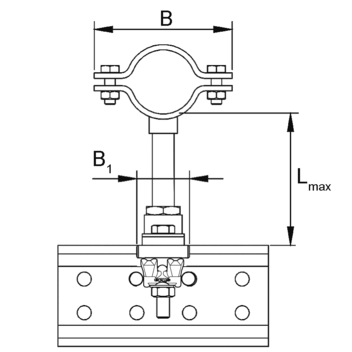

Technical Data
Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm
| Material: | |
| Pipe clamp and connecting parts: | Steel, HCP |
| Bolts and nuts: | Steel, HCP |
| Type | Size range [mm] |
B1 [mm] |
B [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|
| DN 15 | 16 - 22 | 50 | 85 | 1.75 | 1 | 112724 |
| DN 20 | 23 - 27 | 50 | 92 | 1.76 | 1 | 112725 |
| DN 25 | 30 - 34 | 50 | 100 | 1.79 | 1 | 112726 |
| DN 32 | 39 - 44 | 50 | 112 | 1.83 | 1 | 112727 |
| DN 40 | 44 - 49 | 50 | 117 | 1.85 | 1 | 112728 |
| DN 50 | 57 - 61 | 50 | 139 | 2.07 | 1 | 112729 |
| DN 65 | 73 - 77 | 50 | 156 | 2.15 | 1 | 112730 |
| DN 80 | 85 - 89 | 50 | 168 | 2.21 | 1 | 112731 |
| DN 100 | 109 - 116 | 50 | 194 | 2.50 | 1 | 112732 |
