Channel System 41
Application
Ready-to-use bracket for mounting pipes to walls or other building structures.
Installation
When used in combination with sliding elements, a tied rod is absolutely essential for absorbing the forces running along the centre line of the pipe.
For cantilever lengths > 500 mm we recommend the integration of a prop-up.
Technical Data
 |  |
| Anchor load classes A = 1.5 kN B = 2.5 kN C = 3.5 kN D = 6.0 kN Restrictions σzul ≤ 160 N/mm2 fperm ≤ L/150 for L > 450 mm fperm ≤ 3 mm for L ≤ 450 mm |  |
| Material: | Steel, HCP |

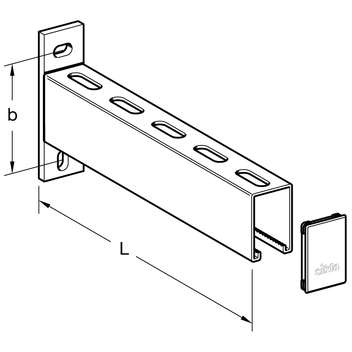

| Type | L [mm] |
Wall plate [mm] |
b [mm] |
Dimensions of elongated hole [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|---|
| 41/41 - 320 | 320 | 134 x 40 x 8 | 100 | 13 x 18 | 0.95 | 10 | 181667 |
| 41/41 - 570 | 570 | 134 x 40 x 8 | 100 | 13 x 18 | 1.50 | 10 | 181676 |
| 41/41 - 820 | 820 | 134 x 40 x 8 | 100 | 13 x 18 | 2.00 | 1 | 161479 |
| 41/62 - 320 | 320 | 134 x 40 x 8 | 100 | 13 x 18 | 1.40 | 10 | 180119 |
| 41/62 - 570 | 570 | 134 x 40 x 8 | 100 | 13 x 18 | 2.25 | 10 | 180128 |
| 41/62 - 820 | 820 | 134 x 40 x 8 | 100 | 13 x 18 | 3.05 | 1 | 180137 |

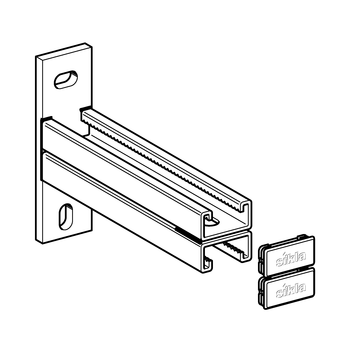

| 41/21 D - 320 | 320 | 134 x 40 x 8 | 100 | 13 x 18 | 1.25 | 10 | 180146 |
| 41/21 D - 570 | 570 | 134 x 40 x 8 | 100 | 13 x 18 | 2.25 | 10 | 180155 |

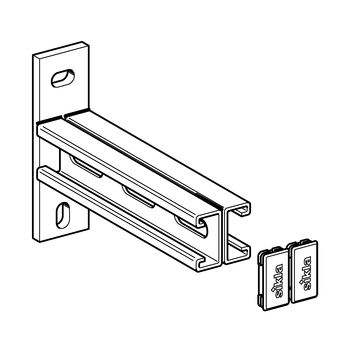

| 41/21 Dq - 320 | 321 | 134 x 40 x 8 | 100 | 13 x 18 | 1.20 | 10 | 180164 |
| 41/21 Dq - 570 | 571 | 134 x 40 x 8 | 100 | 13 x 18 | 1.95 | 10 | 190424 |
