Channel System 41
Application
In combination with Sikla Channels MS 41/41, End Support WBD is ideal for setting up support structures attached to walls, floors and ceilings and for direct fixing to steel beams. In combination with Joining Plate AP, a fixing to beams with flange width > 120 mm is possible.
Scope of delivery

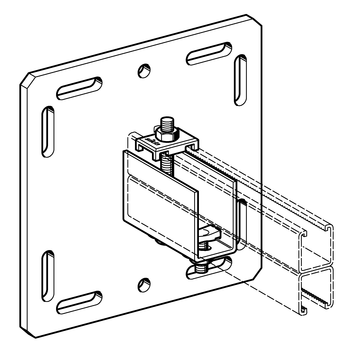

Base plate with welded U-profile
Accessories (pre-assembled):
| - | 2 Holding Brackets and 2 Hexagon Bolts, 2 welded hexagon nuts (WBD C for single channels) |
| - | 1 Holding Bracket, 1 T-Bolt, nut, bolt and washer (WBD C for double channels) |
Installation
Depending on the situation, different options are recommended:
| a) | Frictional connection to steel beams using Assembly Set MS 5P M12 S. |
| b) | Fixing to the building structure using at least 2 heavy-duty anchors M12. Please observe loads and approvals of anchors. For ceiling mounting, the bolt connecting channel and end support must pass through both parts. |
Technical Data
| Type | For Sikla Channel | Dimensions of Base Plate [mm] | For beam width [mm] | Holes for |
|---|---|---|---|---|
| 41/41-45 C0 | 41/41 41/45 | 220 x 220 x 12 | 80 - 120 | M12 |
| 41/41-45 D C0 | 41/41 D 41/45 D | 220 x 220 x 12 | 80 - 120 | M12 |
| Material: | |
| End Support WBD: | Steel, HCP |
| Holding Bracket: | Cast iron, HCP |
| Accessories: | Steel, HCP |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| 41/41-45 C0 | 5.09 | 1 | 179498 |
| 41/41-45 D C0 | 5.16 | 1 | 179561 |
