Channel System 41
Application
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.
Technical Data
| Type | Working load | Sprinkler System |
|---|---|---|
| 90/60/90° | 7.5 kN | ≤ DN 150 |
| Material: | Steel, HCP |

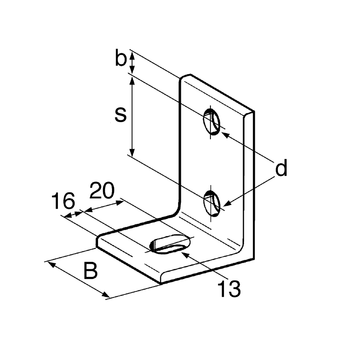

| Type | Angle steel profile DIN 1029 |
B [mm] |
b [mm] |
d [mm] |
s [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|---|---|
| 90/60/90° | 90/60/6 | 40 | 15 | 13 | 50 | 0.26 | 25 | 162072 |
