Pipe Clamps and Accessories
Application

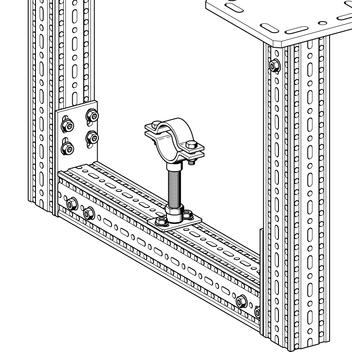

Interface component to connect threaded bar and threaded tube to Beam Section F80/F100.
Installation
Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.
Technical Data
| Type | Tension [kN] | Lateral force [kN] | Perm. bending moment [Nm] |
|---|---|---|---|
| GPL F 80-1/2" | 8,0 | 13,0 | 53 |
| GPL F 80-M10 | 8,0 | 13,0 | 15 |
| GPL F 80-M12 | 8,0 | 13,0 | 26 |
| GPL F 80-M16 | 8,0 | 13,0 | 62 |
| GPL F 100-1/2" | 8,0 | 13,0 | 53 |
| GPL F 100-M10 | 8,0 | 13,0 | 15 |
| GPL F 100-M12 | 8,0 | 13,0 | 26 |
| GPL F 100-M16 | 8,0 | 13,0 | 62 |
| | |

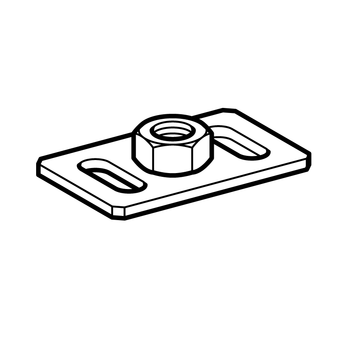

| Dimensions of base plate GPL F 80: | 80 x 50 x 4 mm |
| Dimensions of base plate GPL F 100: | 100 x 50 x 4 mm |
| Material: | Steel, hot-dipped galvanised |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| GPL F 80-1/2" | 0.1 | 50 | 192900 |
| GPL F 80-M10 | 0.1 | 50 | 113004 |
| GPL F 80-M12 | 0.1 | 50 | 112911 |
| GPL F 80-M16 | 0.1 | 50 | 195833 |
| GPL F 100-1/2" | 0.2 | 50 | 113089 |
| GPL F 100-M10 | 0.2 | 50 | 113338 |
| GPL F 100-M12 | 0.2 | 50 | 113646 |
| GPL F 100-M16 | 0.2 | 50 | 113090 |
