Pipe Clamp Stabil I-1/2" HCP


Group

A022


view as PDF file

Application

Heavy pipe clamp for industrial application.

Scope of delivery

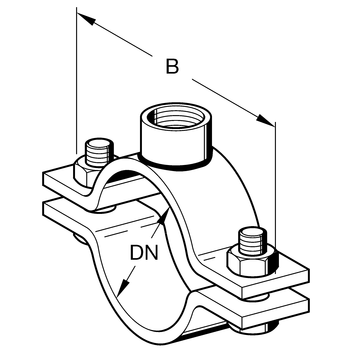

Two-piece pipe clamp with all around welded 1/2" nut with clamping bolts and nuts.

Installation

Suitable for single-point fixing directly with 1/2" threaded tube or connected by respective adapters up to 1" threaded tube.

Technical Data

Material:
Clamp:
Steel, HCP
Bolts:
Steel, class 8.8
Nuts:
Steel, class 8

Type
Material
b x s [mm]
Clamping screws
B
[mm]
Max. adm.
load (tension)
[kN]
22 30 x 5 M10 x 35 86 4.7
27 30 x 5 M10 x 35 93 4.7
34 30 x 5 M10 x 35 102 4.7
44 30 x 5 M10 x 35 114 4.7
49 30 x 5 M10 x 35 119 4.7
61 40 x 5 M12 x 40 136 8
77 40 x 5 M12 x 40 152 8
89 40 x 5 M12 x 40 165 8
115 50 x 5 M12 x 40 192 11
Type For pipe
[NB]
W
[kg]
Quantity
[pack]
Part-
No.
22 15 0.28 25 188147
27 20 0.31 25 188156
34 25 0.32 25 188165
44 32 0.36 25 188174
49 40 0.38 25 188183
61 50 0.60 25 188192
77 65 0.68 25 188201
89 80 0.74 25 188210
115 100 1.03 10 188219
