Pipe Clamps and Accessories
Application

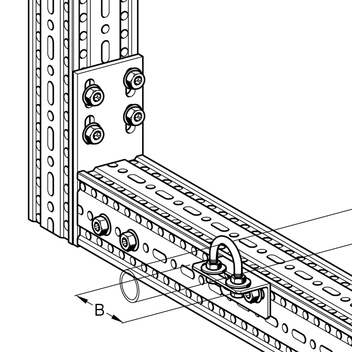

U Bolt Fastening to connect standard U-Bolts required for pipework to the supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100.
Scope of delivery
For U-bolts ≥ 4" always 2 U-bolt fastenings F 80 are needed.
Technical Data

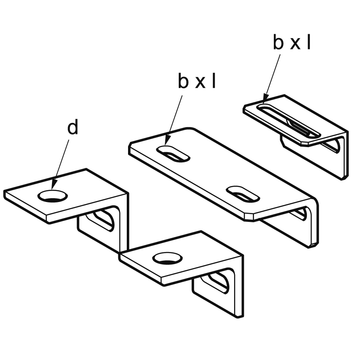

| Type | d [mm] | b x l [mm] | B [mm] |
|---|---|---|---|
| UB F 1/2" - 1 1/2" | - | 65 x 11 | 85 |
| UB F 2" - 3" | - | 20 x 13 | 165 |
| UB F 4" - 6" | 17 | - | 45 |
| UB F 8" - 12" | 22 | - | 45 |
| UB F 378 - 530 | 26 | - | 45 |
| Material: | Steel, HCP or hot-dipped galvanised |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| UB F 1/2" - 1 1/2" | 0.13 | 25 | 192931 |
| UB F 2" - 3" | 0.44 | 10 | 196212 |
| UB F 4" - 6" | 0.18 | 20 | 113124 |
| UB F 8" - 12" | 0.18 | 20 | 113125 |
