Mounting Plate GPL Stabil HCP


Group

1827


view as PDF file

Application

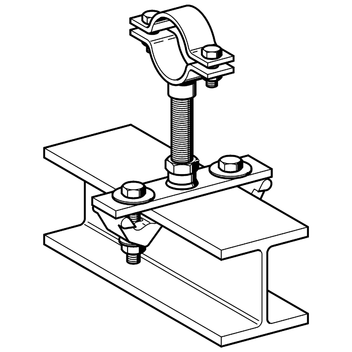

Attachment component to connect Beam Bracket Profil 100 or Channel MS.

Installation

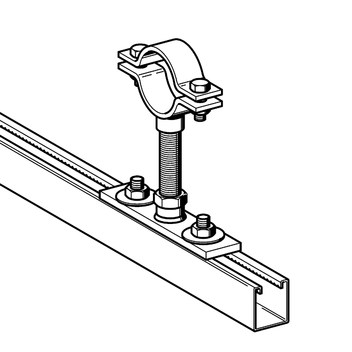

Requires assembly to Beam Bracket Profil with Set MS 5P or two T-Head Bolts TBO HZ 41 M12 at Channel MS.

Technical Data

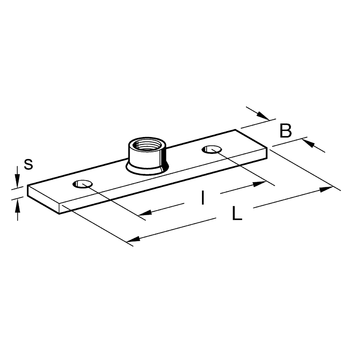

L x B
[mm]
s
[mm]
l
[mm]
Perforation
[mm]
Tension
[kN]
Lateral force
[kN]
Perm. bending moment
[Nm]
200 x 40 8 112 13 18,0 13,0 29,6

Material
Steel, HCP

Type W
[kg]
Quantity
[pack]
Part-
No.
GPL Stabil R 1/2"-100 0.52 50 183791
