Pipe Shoes
Application

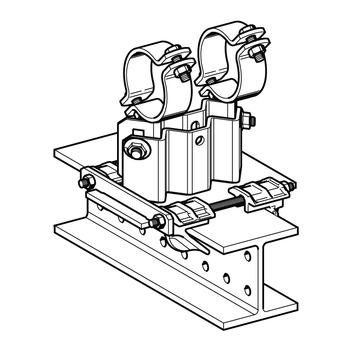

Modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes. The slide plate has to be removed.
Max. beam flange width t ≤ 30 mm
Scope of delivery

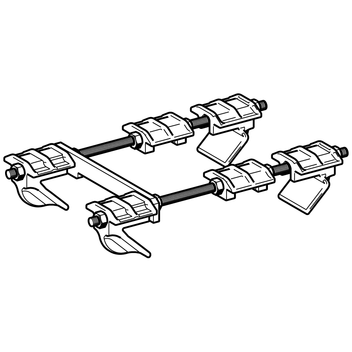

Pre-assembled Fixed Point Set consisting of:
4 clamping hooks
2 threaded rods
1 fixed point crossbar
2 Lift-off (XS 280/300)
Hexagon nuts:
Each 4 for XS 80/120 and XS 140/160
Each 6 for XS 180/220 and XS 240/260
10 for XS 280/300

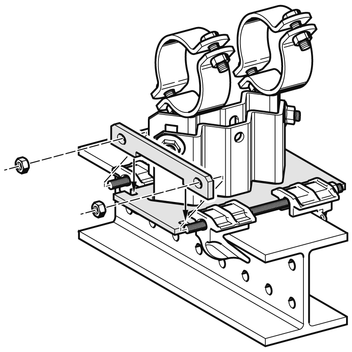

Installation
Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.
Technical Data
|
Flanschdicke [mm] | Trägerbreite 80 - 220 mm Anzugsmoment [Nm] | Trägerbreite 221 - 300 mm Anzugsmoment [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
| Material: | |
| Metal parts: | Steel, HCP |
| Threaded rods, hexagon nuts: | Steel, HCP |
| Clamping hooks: | Cast iron, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
- Pipe Shoe - external monitoring (application/pdf, 626.1 KB)
| Type | For flange width [mm] |
W [kg] |
Qty. [set] |
Part- No. |
|---|---|---|---|---|
| XS 80/120 | 80 - 120 | 2.3 | 1 | 110357 |
| XS 140/160 | 121 - 160 | 2.4 | 1 | 110358 |
| XS 180/220 | 161 - 220 | 2.5 | 1 | 110359 |
| XS 240/260 | 221 - 260 | 2.6 | 1 | 110360 |
| XS 280/300 | 261 - 300 | 3.2 | 1 | 110361 |
