Pipe Shoes
Application

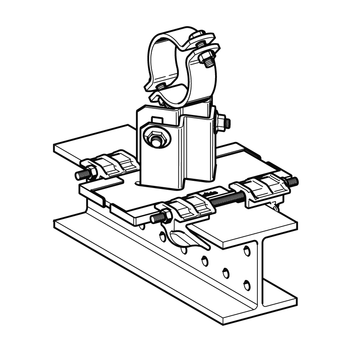

Element for completing Guided Pipe Shoes based on Sliding Pipe Shoes.
Max. beam flange width t ≤ 30 mm
Scope of delivery

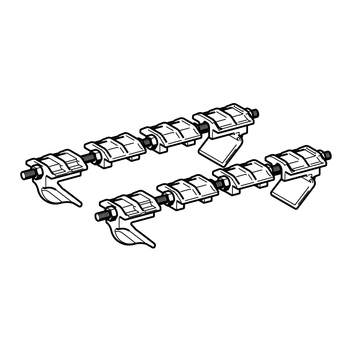

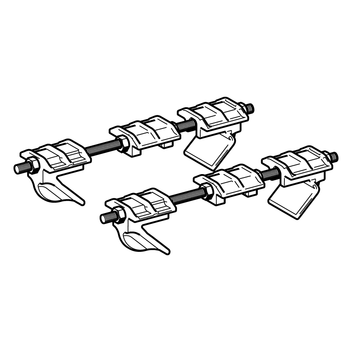

Pre-assembled Guiding Set consisting of:
4 clamping hooks
2 threaded rods
Lift-off:
2 for FS 240/260
4 for FS 280/300
Hexagon nuts:
Each 4 for FS 80/120, FS 140/160 and FS 180/220
8 for FS 240/260 and 12 for FS 280/300
Technical Data
|
Flanschdicke [mm] | Trägerbreite 80 - 220 mm Anzugsmoment [Nm] | Trägerbreite 221 - 300 mm Anzugsmoment [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
| Material: | |
| Metal sheets: | Steel, HCP |
| Threaded rods, hexagon nuts: | Steel, HCP |
| Clamping hooks: | Cast iron, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
- Pipe Shoe - external monitoring (application/pdf, 626.1 KB)
| Type | For flange width [mm] |
W [kg] |
Qty. [set] |
Part- No. |
|---|---|---|---|---|
| FS 80/120 | 80 - 120 | 2.0 | 1 | 110350 |
| FS 140/160 | 121 - 160 | 2.1 | 1 | 110351 |
| FS 180/220 | 161 - 220 | 2.3 | 1 | 110352 |
| FS 240/260 | 221 - 260 | 2.8 | 1 | 110353 |
| FS 280/300 | 261 - 300 | 3.3 | 1 | 112887 |
