Pipe Shoes
Application
Using this Guiding Bracket it's possible to guide Pipe Shoes with different plate thicknesses. The different versions of Type Z are suitable for the respective specified maximum plate thickness (t)and so additionally allow the absorption of lifting forces.
Scope of delivery

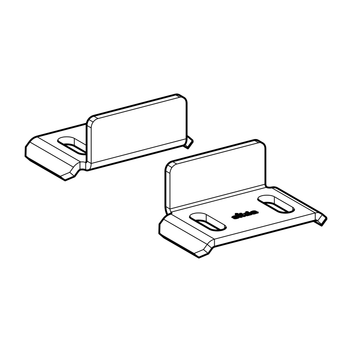

Delivery as set comprising 2 Guiding Brackets.
Installation

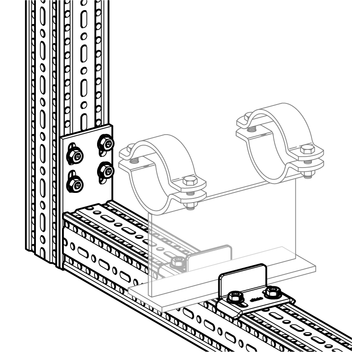

Installation on top of Beam Section TP F 80 repectively F 100 with 2 Self Forming Screws FLS F per Guiding Bracket, i.e. per set 4 Self Forming Screws have to be used altogether. You can find the Self Forming Screw in the siFramo chapters (section Siconnect).
There are 3 mm of free play in the vertical z-axis for Type Z.
There are 3 mm of free play in the vertical y-axis for all Types.
Technical Data
| Type | perm. load Fy [kN] | perm. torque via Fy* [kNm] | perm. load Fz [kN] |
|---|---|---|---|
| FW F 80, all Types Z | 1.9 | 0.4 | 5.0 |
| FW F 80, Typ L | 1.9 | - | - |
| FW F 100, all Types Z | 1.9 | 0.4 | 6.4 |
| FW F 100, Typ L | 1.9 | - | - |

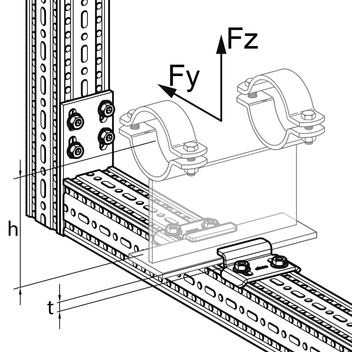

* the torque is calculated by M = Fy x h, whereas the perm. load for Fy may not be exceeded. Dimension h refers from the middle of the pipe to the top of the base plate.
The perm. loads have been determined by load tests following DIN EN 13480-3 annex J.
The used Pipe Shoe has to be verified separately.
| Material: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
* suitable for Sikla Pipe Shoes
| Type | t [mm] |
W [kg] |
Qty. [set] |
Part- No. |
|---|---|---|---|---|
| FW F 80 Z 6 | 6 | 0.5 | 25 | 113628 |
| FW F 80 Z 9 | 9 | 0.5 | 25 | 113629 |
| FW F 80 Z 12 * | 12 | 0.5 | 25 | 113630 |
| FW F 80 Z 15 | 15 | 0.5 | 25 | 113975 |
| FW F 80 L | - | 0.5 | 25 | 113627 |
| FW F 100 Z 6 | 6 | 0.6 | 25 | 113632 |
| FW F 100 Z 9 | 9 | 0.6 | 25 | 113633 |
| FW F 100 Z 12 * | 12 | 0.6 | 25 | 113634 |
| FW F 100 Z 15 | 15 | 0.6 | 25 | 113976 |
| FW F 100 L | - | 0.6 | 25 | 113631 |
