Rod Hangers

Type A with load chain

Beam Connection LKA


Group

A299


view as PDF file

Application

Connecting assembly for the direct attachment of rod hanger assemblies to beam sections with a flange width 100-310mm. The pre-welded Eye-Plate which is fastened to the siFramo80/30 section serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.

Scope of delivery

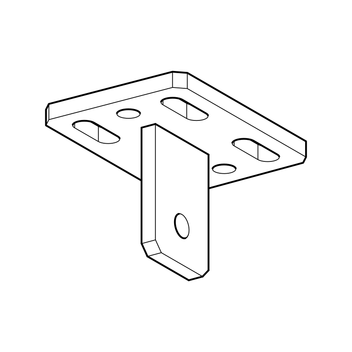

1 Beam Section siFramo 80/30 (see length variants in table below) with pre-welded siFramo Eye-Plate HP F 80
2 U-Holders SB F 80/30-40

Installation

Connect the Beam Section siFramo 80/30 length with pre-welded siFramo Eye-Plate HP F 80 to the underside of the existing steel beam by means of the U-Holders SB F 80/30-40.
Tightening torque for the U-Holder clamps : 40 Nm
Type A: Load Chain runs crosswise to the beam
Type B: Load Chain runs longitudinally to the beam

Technical Data

Max. perm. tensile load according beam width:

Type
100 - 199 mm
200 - 310 mm
M10 10.9 kN 10.8 kN
M12 11.5 kN 11.3 kN
M16 12.1 kN 11.9 kN


The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.

Beam width
[mm]
L
[mm]
B
[mm]
H
[mm]

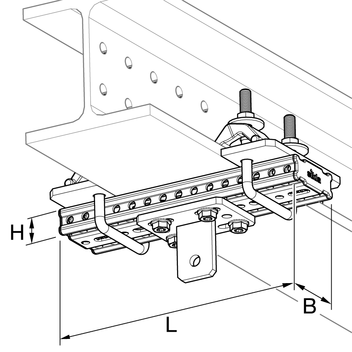

100 - 160 300 80 30
161 - 310 440 80 30

Material:
Steel, HCP
Type W
[kg]
Quantity
[pack]
Part-
No.
LKA-A 100/160 M10 5.0 2 115833
LKA-A 100/160 M12 5.0 2 115834
LKA-A 100/160 M16 5.0 2 115835
LKA-A 161/300 M10 5.6 2 115836
LKA-A 161/300 M12 5.6 2 115837
LKA-A 161/300 M16 5.6 2 115838

LKA-B 100/160 M10 5.0 2 115826
LKA-B 100/160 M12 5.0 2 115827
LKA-B 100/160 M16 5.0 2 115828
LKA-B 161/300 M10 5.6 2 115829
LKA-B 161/300 M12 5.6 2 115831
LKA-B 161/300 M16 5.6 2 115832
