Beam System Eye-Plate HP 80/99


Group

A299


view as PDF file

Application

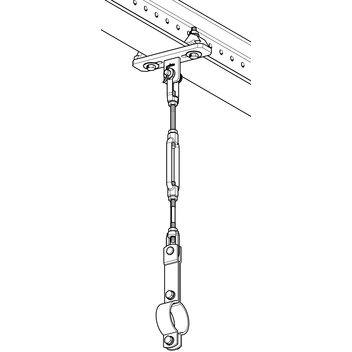

Connecting component for the direct attachment of rod hanger assemblies to beam sections with a flange width 80-99mm. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.

Installation

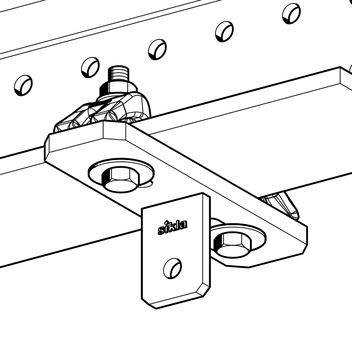

The Beam System Eye-Plate HP 80/99 is clamped to the supporting steel beam section by means of Assembly Set MS 5P M12 S2. The Eye-Plate can also be fastened directly to concrete by means of 2no. M12 anchors.

Type A: Load Chain runs crosswise to the beam
Type B: Load Chain runs longitudinally to the beam

Technical Data

Type
max. perm. tensile load
[kN]
M10 11.2
M12 12.1
M16 12.5


The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.

L
[mm]
B
[mm]
S
[mm]

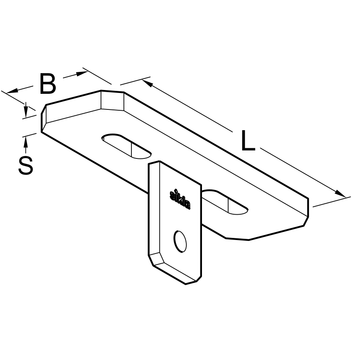

200 60 12

Material:
Steel, HCP

Hinweis: Delivery time on request

Type W
[kg]
Quantity
[pack]
Part-
No.
HP 80/99 - A M10 1.2 10 113029
HP 80/99 - A M12 1.3 10 113030
HP 80/99 - A M16 1.5 10 113031

HP 80/99 - B M10 1.2 10 113026
HP 80/99 - B M12 1.3 10 113027
HP 80/99 - B M16 1.5 10 113028
