siFramo 80/30
Application
Plug-in component designed to create an endplate at the open end of a Beam Section TP F80/30 a Cantilever bracket AK F80/30.
Installation

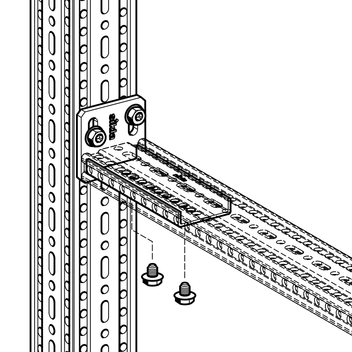

The Beam Section TP F 80/30 connected to the End Support STA F 80/30 E has to be screwed with 2 Self Forming Screws FLS F.
Technical Data

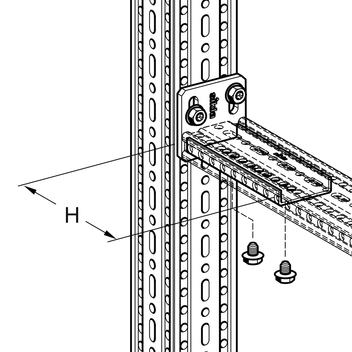

| Type | Dimensions of Base plate [mm] | Slots in Base plate for | H [mm] |
|---|---|---|---|
| STA F 80/30-80-E | 80 x 80 x 8 | M10 | 178 |
| Material: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
ETA-24/0471
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| STA F 80/30-80-E | 0.8 | 1 | 113066 |
