Structural Elements 100
Application

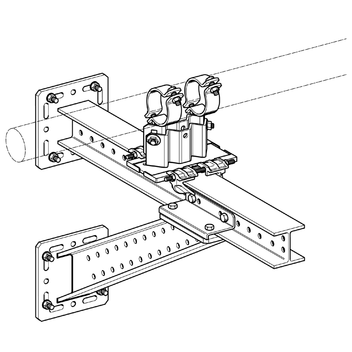

Beam Bracket suitable as support for horizontal structures or as reinforcement of bearing constructions on site.
Installation
Depending on the situation, different options are recommended:
| a) | Fixing to the building structure using 4 heavy-duty anchors M12. |
| b) | Frictional construction to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S. |
| c) | Interlocking connection to Beam Bracket TKO 100 or 120 by means of Bracket Plates FV 100/120. |
Technical Data
| Configuration: | Base plate welded to beam section 100 |
| Material: | Steel, hot-dipped galvanised |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|

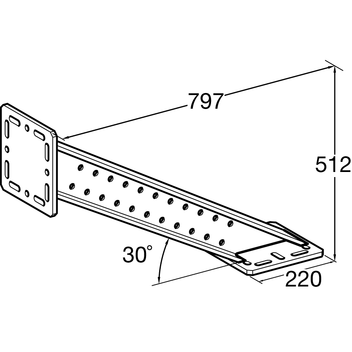

| SKO 100-30 x 760 | 22.0 | 1 | 191531 |
