Structural Elements 100
Application

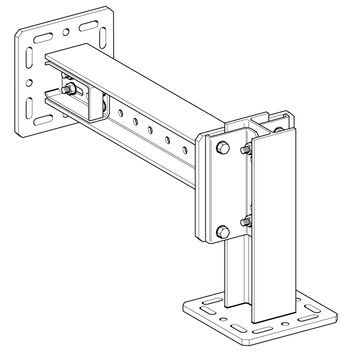

In connection with Beam Bracket TKO 100, the End Support STA 100 enables the construction of crossbars, as well as further conjuctions between building structure and steel construction. By means of the slotted holes a simple compensation of structural deviations is possible from up to 50 mm.
Scope of delivery
Base plate welded to beam holder
Accessories:
4 Hexagon Bolts M12 x 35
4 Hexagon Nuts M12
8 Washers

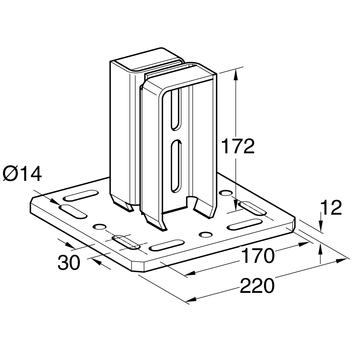

Technical Data
| | |
| Material: | |
| STA 100: | Steel, hot-dipped galvanised |
| Bolts: | Steel, class 8.8, hot-dipped galvanised |
| Nuts: | Steel, class 8.8, hot-dipped galvanised |
| Washers: | Steel, hot-dipped galvanised |
| Type | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|
| STA 100 | 6.4 | 1 | 183971 |
