Structural Elements 100
Application

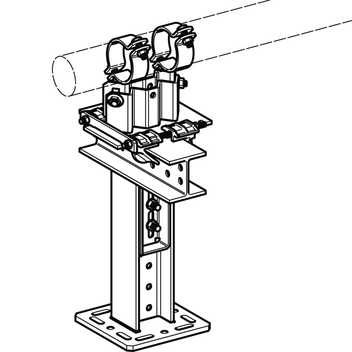

In combination with Beam Bracket TKO 100, the T-Adapter allows different T-structures on the floor or hanging T-structures without need of further accessories. Oblong holes permit a simple compensation on structural situations from up to 50 mm.
Scope of delivery

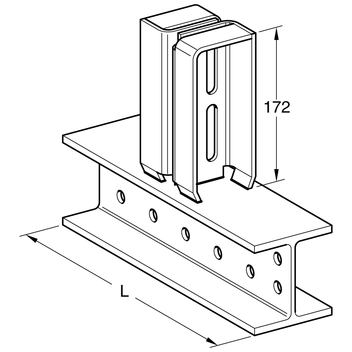

T-Adapter TA 100
Accessories:
4 Hexagon Bolts M12 x 45
4 Hexagon Nuts M12
8 Washers
Technical Data
| Configuration: | Beam 100 welded to beam holder |
| Material: | |
| TA 100: | Steel, hot-dipped galvanised |
| Bolts: | Steel, class 8.8, hot-dipped galvanised |
| Nuts: | Steel, class 8, hot-dipped galvanised |
| Washers: | Steel, hot-dipped galvanised |
Auch erhältlich mit DUALSHIELD C5H-Oberfläche für hochkorrosive Atmosphären.
| Type | L [mm] |
W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|
| TA 100 x 200 | 200 | 5.1 | 1 | 191081 |
| TA 100 x 400 | 400 | 8.4 | 1 | 191166 |
| TA 100 x 600 | 600 | 11.8 | 1 | 191099 |
