Channel System 41

41/21/2,0

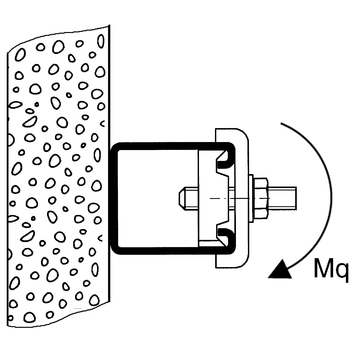

Max. torsional Moment Mq

Channel MS 41 HCP


Group

1811


view as PDF file

Application

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

Scope of delivery

Available as single or double channels.
Double channels are joined together by clinching.

Installation

All Channels MS 41 hcp are serrated inside and provide numerous combination options with other high corrosion protected system components.

Technical Data

Material:
Steel, HCP


D = Double channel

Type
W/H/th [mm]
Section modulus
[cm3 ]
Moment of inertia
[cm4 ]
Radius of gyration
[cm]
41/21/2.0
Wy : 0.82
Wz : 2.11
ly : 0.92
lz : 4.33
iy : 0.76
iz : 1.65
41/41/2.5
Wy : 2.95
Wz : 4.40
ly : 6.17
lz : 9.02
iy : 1.43
iz : 1.73

41/21/2.0 D
Wy : 2.35
Wz : 4.22
ly : 4.94
lz : 8.65
iy : 1.24
iz : 1.64
41/41/2.5 D
Wy : 8.96
Wz : 8.80
ly : 36.74
lz : 18.03
iy : 2.46
iz : 1.72

Type
W/H/th [mm]

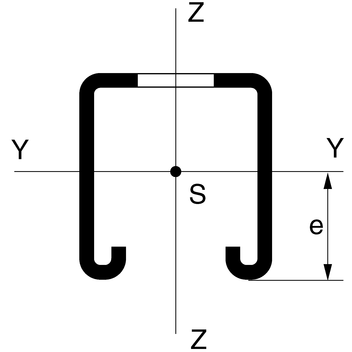

Cross section
A
[cm2 ]
Distance
e
[cm]
Max. point
carrying capacity
Fmax [kN]
Max. torsional
moment
Mq [Nm]
41/21/2.0 1.60 1.12 4,0 44,5
41/41/2.5 3.03 2.10 6,0 44,5

41/21/2.0 D 3.21 2.10 4.0* 44.5
41/41/2.5 D 6.07 4.10 6.0* 44.5

Notice:
All values take into account the perforation of the channels.
For load charts, see chapter "Pressix CC 41".

Load charts:

Channel MS 41/21/2.0
Channel MS 41/41/2.5

Approvals / Compliance



This product is has obtained the "RAL Gütezeichen Rohrbefestigung" and is subject to external surveillance according to RAL GZ-655.


* = no RAL quality label

Type Length
[m]
Weight
[kg/m]
Qty.
[m]
Part-
No.
41/21/2.0 6 1.32 6 193860
41/41/2.5 6 2.36 6 161497
41/21/2.0 D * 6 2.64 6 193884
41/41/2.5 D * 6 4.74 6 166748
